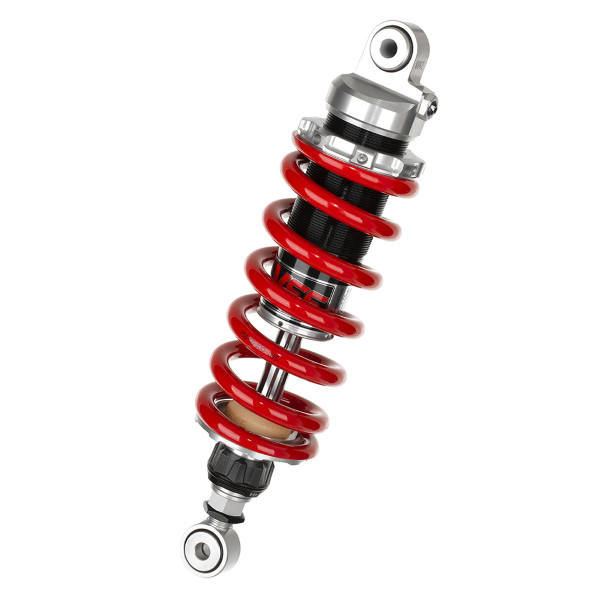

YSS POST MONO SHOCK ABSORBER MZ456-320TRL-20-85 YAMAHA FZ1
YSS POST MONO SHOCK ABSORBER MZ456-320TRL-20-85 YAMAHA FZ1
Regular price
€363,45
Regular price
€504,79
Sale price
€363,45
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Milled aluminum body, shock absorber strut adjustable in spring preload and rebound (30 clicks).
The spring preload is locked via a threaded pin.
The length of the damper is adjustable by + -5 mm.
The adjustment tool is included in the delivery.
| BRAND | MODEL | CC | YEARS | CHASSIS |
|---|---|---|---|---|
| YAMAHA | FZ1 | 1000 | 2006-2009 | RN165-RN166-RN167 |
| YAMAHA | FZ1 | 1000 | 2006-2015 | RN165-RN16H-RN161-RN16D-RN166-RN168-RN16A-RN16M-RN16R |
| YAMAHA | FZ1 FAZER | 1000 | 2006-2006 | RN161-RN162-RN163 |
| YAMAHA | FZ1 FAZER | 1000 | 2006-2015 | RN165-RN16H-RN161-RN16D |
| YAMAHA | FZ1 FAZER | 1000 | 2007-2007 | |
| YAMAHA | FZ1 FAZER | 1000 | 2007-2010 | RN161-RN162-RN164 |
| YAMAHA | FZ1 FAZER | 1000 | 2011-2012 | RN16D |
| YAMAHA | FZ1 FAZER ABS | 1000 | 2007-2012 | RN168-RN169 |
| YAMAHA | FZ1-N | 1000 | 2011-2011 | RN16H |
| YAMAHA | FZ1-NA | 1000 | 2010-2011 | RN16R |
| YAMAHA | FZ1N | 1000 | 2006-2015 |
RN165-RN16H |
| Technical data: | |
|---|---|
| Type5 | : Emulsified shock absorber |
| Upper fixing | : Eyelet |
| Internal eyelet diameter | : 10 mm |
| Length | : 320 mm |
| Bottom fixing | : Eyelet |
| Internal eyelet diameter | : 10 mm |
| Adjustment | : Variable preload Variable length +/- 5mm Rebound adjustment |
| Spring color | : Red |
| Spring characteristics | : 100 |
| Spring length | : 185 mm |
| Spring diameter | : 56 mm |
| Tanks | : No |
| Producer | : YSS |
| Piston diameter | : 45 mm |
| Stem diameter | : 16 mm |
